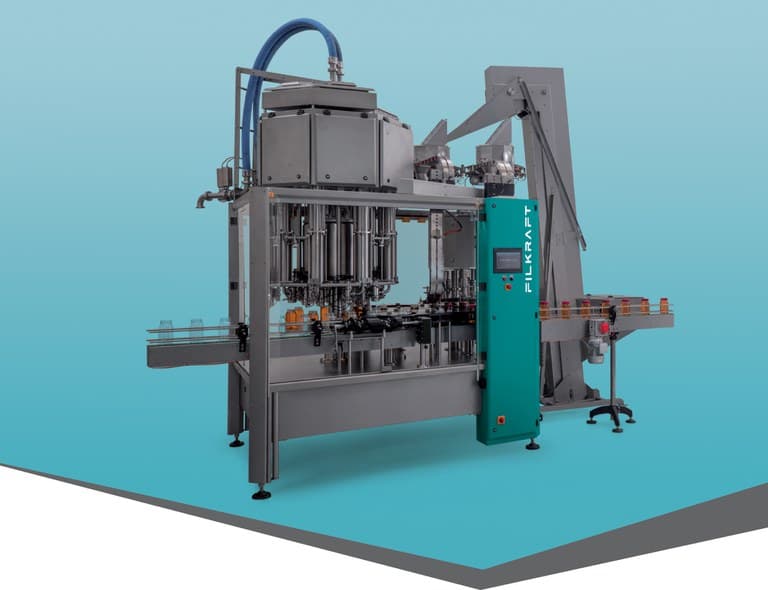

K200P Piston Filling & Capping Machine

High-speed rotary piston filler and capper for high-viscosity products. Up to 12,000 bottles per hour with electronically actuated pistons.

Production Speed

Up to 12,000 bottles/hr

Container Size

100 ml – 5,000 ml

Capping System

Integrated capper

Overview

The K200P Piston Filling & Capping Machine is a high-performance rotary piston filler designed specifically for high-viscosity products such as yoghurt, oils, sauces, and similar thick liquids. Unlike traditional cam-driven piston fillers, the K200P uses electronically and individually actuated pistons, giving exceptional flexibility, control, and the ability to optimise filling parameters for different viscosities. Available in multiple filling and capping configurations to suit various production requirements.

Key Features

Electronically actuated pistons (no cam drive) for superior control and flexibility
Optimised filling performance for high-viscosity products
High output up to 12,000 bottles per hour
Low maintenance design with reduced downtime
Multiple filling and capping configurations available
Handles a wide range of thick and viscous products
Robust construction with European-quality standards

Ideal Applications

Yoghurt and dairy products

Edible oils and cooking oils

Sauces, dressings, and condiments

High-viscosity food and beverage filling

Contract manufacturers producing thick liquid products

TECHNICAL SPECIFICATIONS

Configuration	Rotary Piston Filler + Capper
Filling Type	Piston (electronically actuated)
Production Speed	Up to 12,000 bph
Container Range	100 ml – 5,000 ml (PET, HDPE, Glass)
Cap Types	Flat, Sportscap, Fliptop, ROPP
Products	High-viscosity (yoghurt, oils, sauces, etc.)
Construction	Heavy-duty stainless steel, European-grade
