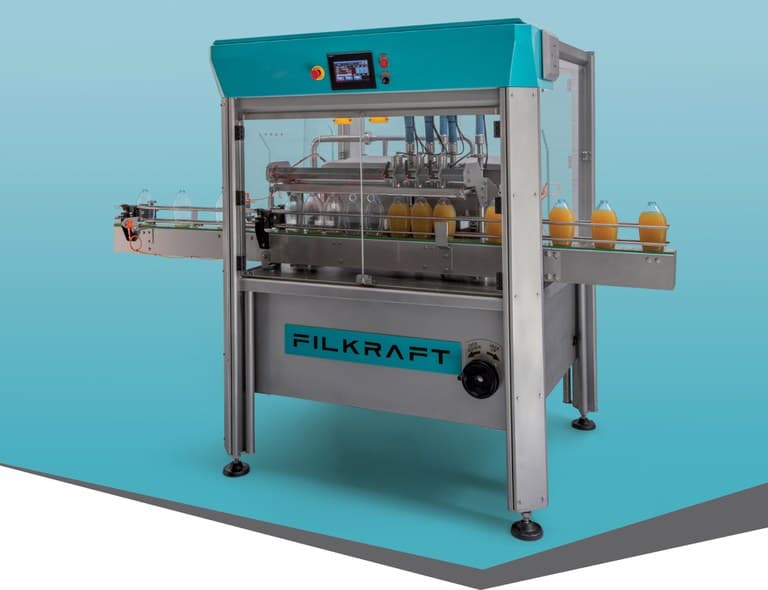

K600 Linear Pump Filling Machine

Versatile linear pump filler for high-viscosity products. Configurable with 2–12 valves and multiple pump types. Up to 3,600 bottles per hour.

Production Speed

Up to 3,600 bottles/hr

Container Size

100 ml – 5,000 ml

Capping System

Optional integration with cappers available

Overview

The K600 Linear Pump Filling Machine is a flexible and hygienic solution for filling high-viscosity products such as yoghurt, oils, sauces, and similar thick liquids. It uses a linear drive system and can be equipped with Progressing Cavity (PC), gear, or lobe pumps to suit different product characteristics. The machine offers excellent configurability with 2 to 12 filling valves and the choice of manual or automatic jacking. Built to European EHEDG standards, it combines high hygiene, ease of maintenance, and reliable performance in a compact footprint.

Key Features

Highly configurable with 2 to 12 filling valves
Choice of PC, gear or lobe pumps for different viscosities
Compact design with excellent maintenance access
Manual or automatic jacking systems
High hygiene standards (EHEDG compliant)
Suitable for a wide range of high-viscosity products
Low maintenance and easy to operate

Ideal Applications

Yoghurt and dairy products

Edible oils and cooking oils

Sauces, dressings, and condiments

Honey and other thick food products

High-viscosity beverage and food contract filling

TECHNICAL SPECIFICATIONS

Configuration	Linear Pump Filler (2–12 valves)
Filling Type	Pump (PC, Gear or Lobe)
Production Speed	Up to 3,600 bph (500 ml)
Container Range	100 ml – 5,000 ml (PET, HDPE, Glass)
Pump Options	Progressing Cavity, Gear, Lobe
Jacking	Manual or Automatic
Construction	Stainless steel, EHEDG hygiene standards
