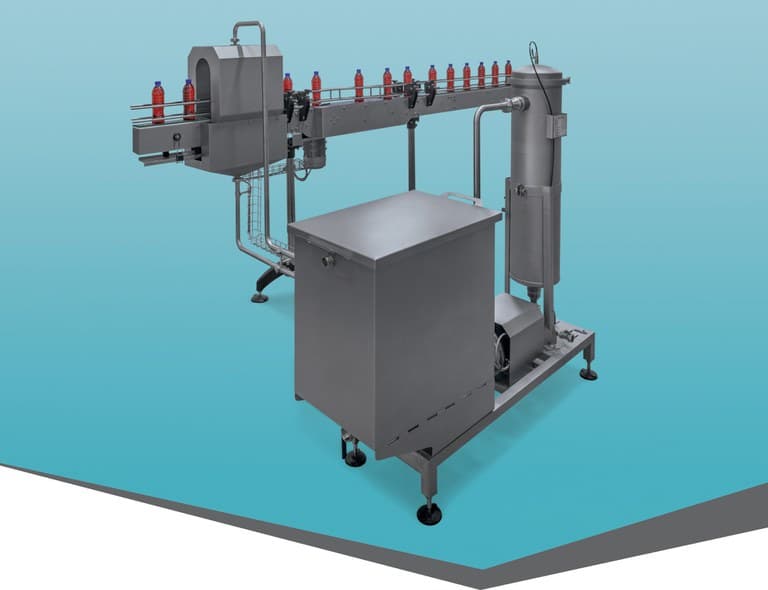

Linear External Bottle Rinser

Linear external bottle rinser for cleaning the outside of containers. Features high-velocity spray nozzles and water recycling system.

Production Speed

Matched to line speed

Container Size

PET, HDPE, Glass containers

Capping System

N/A (External cleaning)

Overview

The Linear External Bottle Rinser removes dust, spilled product, and contaminants from the exterior surface of containers before labelling or packaging. It uses a spray tunnel with four high-velocity spray nozzles. Rinse water is collected for recycling and filtering, and the water level in the buffer tank is automatically regulated by a float valve. This ensures clean containers while minimising water consumption.

Key Features

Thorough external cleaning of containers
High-velocity spray nozzles for effective rinsing
Water recycling and filtration system
Automatic tank level control
Reduces water usage and operating costs
Compact design integrates easily into lines
Ideal before drying and labelling stages

Ideal Applications

Pre-label external cleaning of bottles and jars

Dairy, beverage, and food packaging lines

Operations requiring high visual and hygiene standards

Integration with drying and labelling equipment

TECHNICAL SPECIFICATIONS

Configuration	Linear External Spray Rinser
Nozzles	Four high-velocity spray nozzles
Water System	Collection, recycling and filtering
Level Control	Automatic float valve regulation
Function	External surface cleaning
Construction	Stainless steel, hygienic
